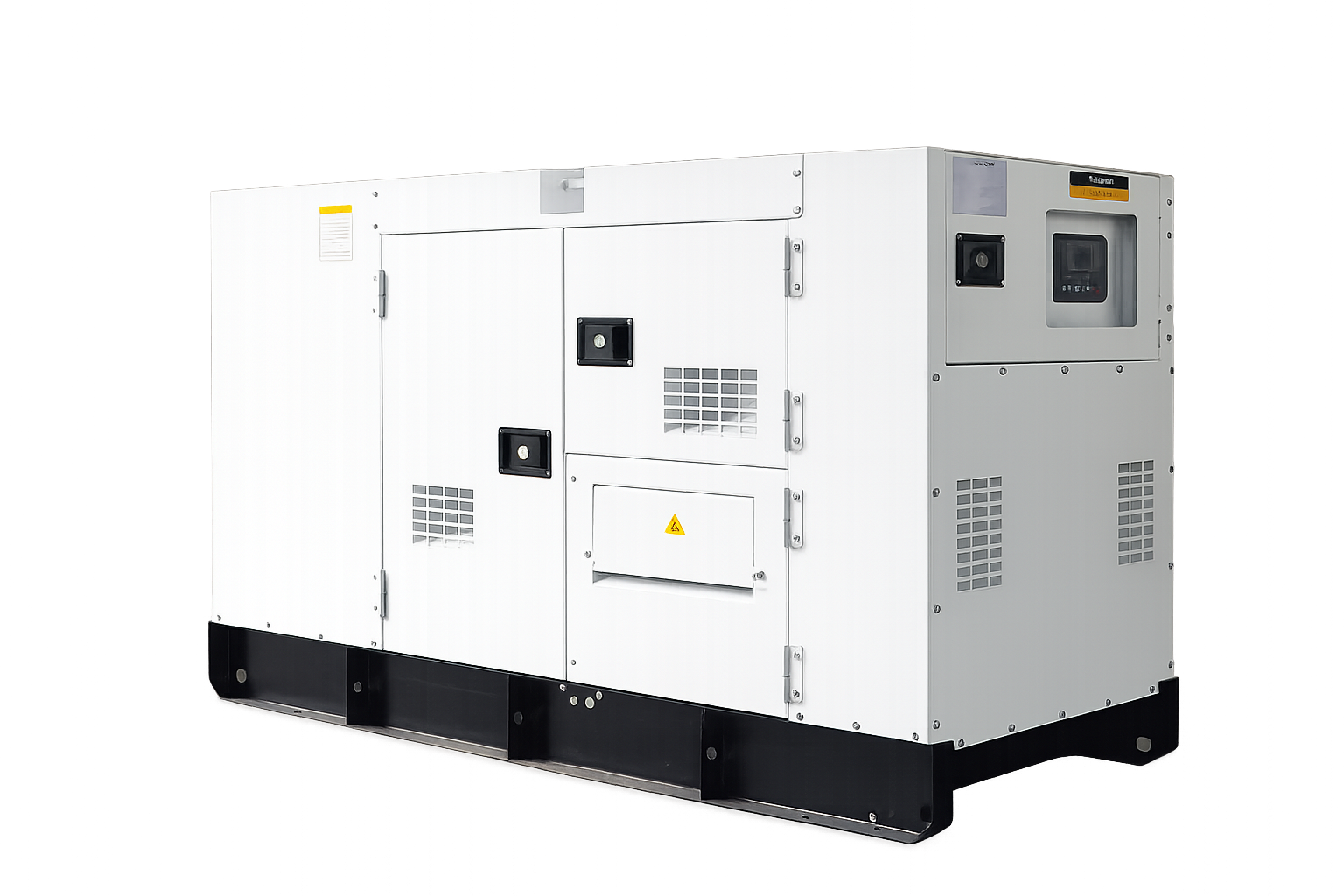

NVX30
Novux Engineering
Built Different
Novux
NVX30
Silent Canopy Series
Technical Specifications
Electrical Performance
Output Power 30 kVA
Frequency 60 Hz
Speed 1800 rpm
Rated Voltage 220/380 V
Phase & Connection 3 Phase, 4 Wire
Power Factor 1.0
Voltage Regulation ±1 %
Engine Specifications
Engine Brand Cummins
Engine Speed 1800 rpm
Cylinder Configuration 4/L
Cooling System Water cooling with fan
Injection Type Direct injection
Fuel Consumption 0.23 L/kW·h
Startup Mode 24V DC Automatic
Alternator Details
Alternator Brand Stamford
Type Brushless, Self-excited
Insulation Class H
Protection Class IP23
Voltage Fluctuation ≤0.5 %
Frequency Fluctuation ≤0.5 %
Soundproof Enclosure
Noise Level 63-68 dB @ 7m
Fuel Tank 10 hours
Material Cold steel with powder paint
Weather Protection IP65 rated
Dimensions
Length
2100 mm
Width
1100 mm
Height
1400 mm
Weight
850 kg
Key Features
Ultra-Silent Operation
Advanced acoustic design achieves 63-68dB at 7 meters
Smart Controller
Smartgen auto mains failure controller with LCD display
Comprehensive Protection
Low oil pressure, high temperature, voltage, and overspeed protection
Easy Maintenance
180° revolvable door with internal lighting for service access
Certifications & Compliance
ISO 3046
Engine Performance
ISO 8528
Generator Sets
IEC 34
Electrical Machines
BS 5514
Safety Standards
Warranty Information
Period 1 year or 1000 hours
Coverage Parts
Conditions
- • Regular maintenance as per schedule
- • Use of genuine parts only
- • Operation within specified parameters
Delivery & Installation
First Production Time 20 days
Shipping to St. John's, Antigua 50 days
Installation & Commissioning 20 working days
Total Lead Time 90 days
From order confirmation to operational status
